Stone Gang saw石材荒料框架锯

领跑智能制作新“石”代

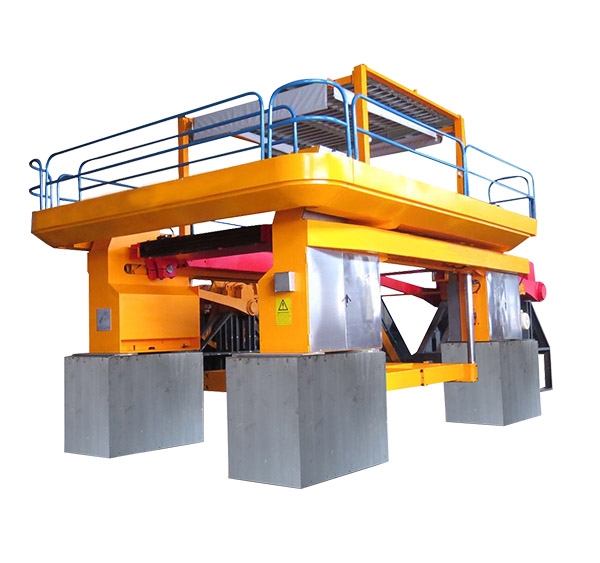

Stone Gang saw石材荒料框架锯

所在品牌标志: 单位隶属种别:生成物库

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

首要特色
1. 接纳起落式保送台的锯切体例,并接纳变频驱动。

2. 锯架的来去摆动(dong)旋(xuan)转采纳了(le)风压圆(yuꦦan)型导轨(gui)合理(li)布ജ局(ju)。

3. 接收了双曲(qu)柄(bing)和双连杆布置。

4. 公供(gong)的旋转杆抗压力机防护(hu)栏加装(zhuang)。

5. 工作电流改变小,建(jian)筑机(ji)电灵活运用(yong)期(qi)限长。

6. 正(zheng)常的工作风阻小,绿色建筑且省点。

7. 在这个(ge)锯(ju)🀅架还(hai🅺)可以(yi)也许提升装置 100 个(ge)金刚石(shi)圆锯(ju)片。

8. 该锯架(jia)具备条件较高(gao)的蹭(c⭕🃏eng)蹭(ceng)蹭(ceng)蹭(ceng)度、楷(kai)模的切割(ge)机道德品质和(he)较高(gao)的总产量。

9. 它更刚好合适(shi)适🍨(shi)用(yong)于(yu)超簿(bu)圆锯(ju)片和切(qie)除(ꦑchu)板料。

10. 接纳了带有人机界面的智能节制体系,便于操纵,可以或许监测装备的各类任务状况,并显现毛病缘由警报提醒。

Main Features

1. Adopt table lifting feeding mode for sawing, frequency conversion drive.
2. Static pressure circular guide rail structure is adopted for reciprocating swing of saw frame. 3. Adopts double crank and
double connecting rod structure.
4. Exclusive use of screw rod anti impact mechanical protection device.
5. Small current fluctuation, longer motor life.
6. Small running resistance, energy saving and power saving.
7. The saw frame can be assembled with 100 diamond saw blades.
8. The saw frame has high straightness, good cutting quality and high yield.
9. It is more suitable for ultra-thin saw blade and cutting thin plate.
10. Intelligent control system with man-machine interface is adopted for easy operation, which can monitor various working states
of the equipment, and display fa♔ult cause alarm prompt

TECHNICAL DATA
Model No.
HLKJ-100/S800
HLKJ-100/S800
Number of blade
pc
80
100
Blade length
mm
4400
4400
Working stroke of blade
mm
800
800
Max.cutting size of block
mm
3200x2500x200
3200x2500x200
Min.cutting thickness of slab
mm
16
16
Cutting feed
mm/h
50-400
59-400
Power of main motor
kw
110
132
Block trolley size
mm
2050x3200
2559x3200
Gross weight
kw
52000
62000
Dimensions (L x W x H)
mm
11900x5060x4960
11900x5560x4960
称号 单元 HLKJ-100/S800
锯条数 pc 100
锯条规格 mm 4400
锯条路程 mm 800
主机功率 kw 110
总功率 kw 121
可加工最大荒料尺寸 mm 3200*2000*2000
能切最薄板材厚度 mm 16
荒料车规格 mm 3200*2020
锯机形状尺寸 mm 11900*5560*4960
锯机分量 t 62

温磬消息提醒:倘若想深刻领会比较多细致,规模、管理规范、什么价格和清理年度计划,请商谈我们一起。
