板材打磨装备

Single Head Bridge Polishing MachineHLAP-1800桥式磨机

领跑智能制作新“石”代

Single Head Bridge Polishing MachineHLAP-1800桥式磨机

单位隶属的品牌: 归属种别:护墙板抛光处理辅助装备

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数


营销可qq空间留言德律风电话,我们一起会与您商谈!

Purchase please leave a message phone and email, we will contact you!




单头桥式抛光机
HLAP-1800 是一款桥式外表抛光机,具有主动换头功效,精度高、不变性强,用处普遍且效力高,是用于各类资料(如花岗岩、石英、大理石、石灰石等)的校准、哑光研磨、抛光、洗擦和盘式喷砂等任务的万能型装备。这款平板抛光机可设置装备摆设成多种差别的计划,具有两种差别的横向挪动尺寸(2220 毫米或 3200 毫米),具有主动换刀功效,另有机器式或电动式遏制装配……等等。跑道的长度能够按照您的须要和您的任务地区停止调剂。

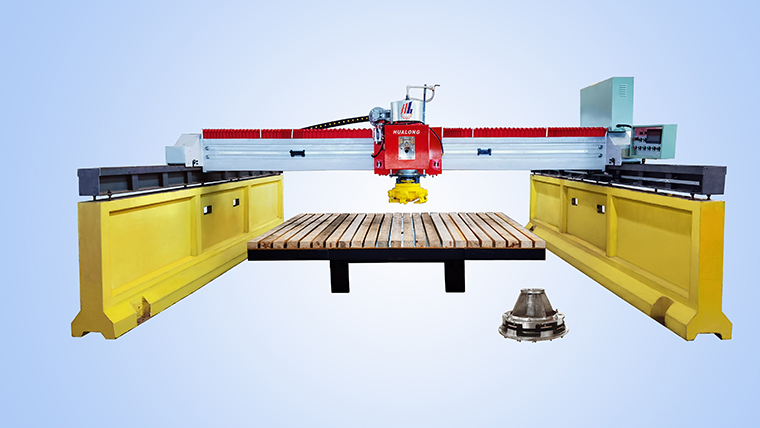

Single Head Bridge Polishing Machine with Automatic Tool Change
HLAP-1800 is a bridge type surface polishing machine with automatic head change, accurate and stable, versatile and efficient, which is a true all rounder for calibration, matt grinding, polishing, brushing and disc blasting all common materials, such as granite, quartz, marble, limestone...
This slab polishing machine can be configurated in different solutions, with 2 different traverse capacities ( 2220 or 3200 mm ), with automatic tool change, with mechanical or motorized stop…etc.
The runway length is a𒀰djustable according to 🃏your needs and your workshop area.


使用西式

𒊎* 软质石(云南人(ren)造石、缟(gao)玛瑙(nao)石、皂石等)使用(yong)兰克ꦰ福头开始打磨抛(pao)光

* 聚酯(zhi)板大(da)理石(shi)(大(da)理石(shi)、石(shi)英晶(jing)体(ti)♐砂(sha)、石(shi)英晶(jing)体(ti)砂(sha)岩等)用菲克特头终止增加光(guang)泽

Applications
* Hard stone (granite, quartz,🥀 quartzite, etc.) polishing with fickert head
* Soft♋ stone (marble, onyx, soapstone, etc.) polishing with frankfurt head


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!


Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆机械,精机五轴联动桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,石才切机,石才制造制作场配备,石才打磨机,石才打磨配备,石才制造制作里头,大理石台面制造制作里头,水刀,水刀激光切机,矿井挖掘出挖掘出配备,矿井挖掘出园盘锯,园盘双刀锯,矿井挖掘出机,矿井挖掘出锯。

产物型号 Name 单元 HLDM-1800
主机电功率 Power of main motor kw 11
任务平台尺寸 Working platform dimensions mm 3200 x 2000
须要气压 Air pressure required Mpa 0.3 - 0.5
最大加工尺寸 Max. processing dimensions mm 3200 x 3200 x 60
任务台倾斜 Working platform tilting degree 0-85
抛秃顶转速 R.P.M. of polishing head r/min 550
X轴进给速率 X axis feeding speed mm/min 5300
Y轴进给速率 Y axis feeding speed  mm/min 4000
耗宇量 Air consumption m3/min 0.15 - 0.3
耗水量 Water consumption m3/h 4
总分量 Gross weight kg 7000
机台尺寸 Dimension (L x W x H) mm 6000 x 5000 x 2800
